LS Materials has more than 45 types
of cells in mass production.
PCB type
22Φ, 33Φ, 35Φ Series Cell
Terminal Type
-
- Snap-in
(100F/ 120F)
-
- Lug
(320F ~ 720F)
-
- Snap-in
(4pin,350F ~ 720F)
22 ∅SeriesPCB mounting type cell
| Series | Rated Voltage |
Capa Citance |
Part No. | Max. ESR(DC) |
Max. Current |
Type | Dimensions | Spec Sheet |
|---|---|---|---|---|---|---|---|---|
| V | F | mΩ | A | Φ x mm | ||||
| 22Ø | 2.8 | 120 | LSUC 002R8S 0120F EA | 9.0 | 81 | Snap-in | 22 x L46 | download |
| 22Ø | 2.8 | 100 | LSUC 002R8S 0100F EA | 9.0 | 74 | Snap-in | 22 x L46 | download |
| 22Ø | 3.0 | 100 | LSUC 003R0S 0100F EA | 7.0 | 88 | Snap-in | 22 x L46 | download |
33 ∅SeriesPCB mounting type cell
| Series | Rated Voltage |
Capa Citance |
Part No. | Max. ESR(DC) |
Max. Current |
Type | Dimensions | Spec Sheet |
|---|---|---|---|---|---|---|---|---|
| V | F | mΩ | A | Φ x mm | ||||
| 33Ø | 2.8 | 360 | LSUC 002R8L 0360F CU03 | 3.2 | 234 | Lug | 33 x L61 | download |
35 ∅SeriesPCB mounting type cell
| Series | Rated Voltage |
Capa Citance |
Part No. | Max. ESR(DC) |
Max. Current |
Type | Dimensions | Spec Sheet |
|---|---|---|---|---|---|---|---|---|
| V | F | mΩ | A | Φ x mm | ||||
| 35Ø | 2.8 | 320 | LSUC 002R8L 0320F EM | 2.0 | 273 | Lug | 35 X L61 | download |
| 35Ø | 2.8 | 350 | LSUC 002R8L 0350F EA | 3.2 | 231 | Lug or Snap-in | 35 X L61 | download |
| 35Ø | 2.8 | 400 | LSUC 002R8L 0400F EA | 3.0 | 255 | Lug or Snap-in | 35 X L66 | download |
| 35Ø | 2.8 | 450 | LSUC 002R8L 0450F EA | 3.0 | 268 | Lug or Snap-in | 35 X L71 | download |
| 35Ø | 2.8 | 600 | LSUC 002R8L 0600F EA | 3.2 | 288 | Lug or Snap-in | 35 X L71 | download |
| 35Ø | 2.8 | 720 | LSUC 002R8L 0720F EA | 2.0 | 413 | Lug or Snap-in | 35 X L105 | download |
| 35Ø | 3.0 | 360 | LSUC 003R0L 0360F LE | 1.7 | 335 | Lug | 35 x L61 | download |
| 35Ø | 3.0 | 380 | LSUC 003R0L 0380F EA | 3.2 | 257 | Lug or Snap-in | 35 X L61 | download |
| 35Ø | 3.0 | 430 | LSUC 003R0L 0430F EA | 3.0 | 282 | Lug or Snap-in | 35 X L66 | download |
| 35Ø | 3.0 | 480 | LSUC 003R0L 0480F EA | 3.0 | 295 | Lug or Snap-in | 35 X L71 | download |
| 35Ø | 3.0 | 600 | LSUC 003R0L 0600F EA | 3.2 | 308 | Lug or Snap-in | 35 X L71 | download |

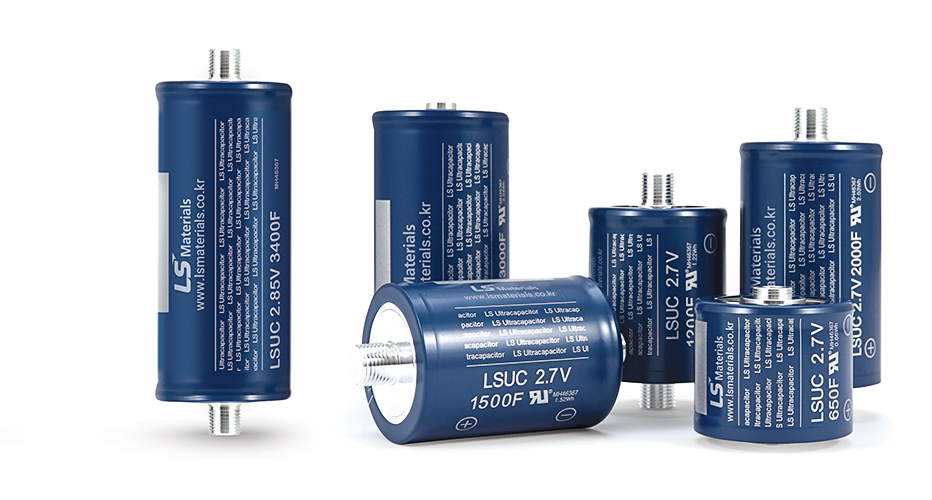

BusBar type
60Φ Series Cell
Terminal Type
-
- Short Screw
(ST01)
-
- Weldable
(WT01)
-
- Long Screw (LT01)
M16 Terminal
-
- Long Screw (LT02)
M12 Terminal
60 ∅SeriesBusbar connection type cell
| Series | Rated Voltage |
Capa Citance |
Part No. | Max. ESR(DC) |
Max. Current |
Type | Dimensions | Spec Sheet |
|---|---|---|---|---|---|---|---|---|
| V | F | mΩ | A | Φ x mm | ||||
| 60Ø | 2.7 | 650 | LSUC 002R7C 0650F NH | 0.57 | 640 | Cylindrical | 60 x L51.5 | download |
| 60Ø | 2.7 | 1200 | LSUC 002R7C 1200F NH | 0.33 | 1160 | Cylindrical | 60 x L74 | download |
| 60Ø | 2.7 | 1500 | LSUC 002R7C 1500F NH | 0.28 | 1426 | Cylindrical | 60 x L85 | download |
| 60Ø | 2.7 | 2000 | LSUC 002R7C 2000F NH | 0.27 | 1753 | Cylindrical | 60 x L102 | download |
| 60Ø | 2.7 | 3000 | LSUC 002R7C 3000F NH | 0.20 | 2500 | Cylindrical | 60 x L138 | download |
| 60Ø | 2.85 | 3400 | LSUC 02R85C 3400F NH | 0.23 | 2719 | Cylindrical | 60 x L138 | download |
| 60Ø | 3.0 | 3000 | LSUC 003R0C 3000F NH | 0.20 | 2800 | Cylindrical | 60 x L138 | download |
| 60Ø | 3.0 | 3400 | LSUC 003R0C 3400F NH | 0.20 | 3000 | Cylindrical | 60 x L138 | download |
| 60Ø | 3.0 | 3400 | LSUC 003R0C 3400F LE | 0.14 | 3400 | Cylindrical | 60 x L138 | download |
Lead type

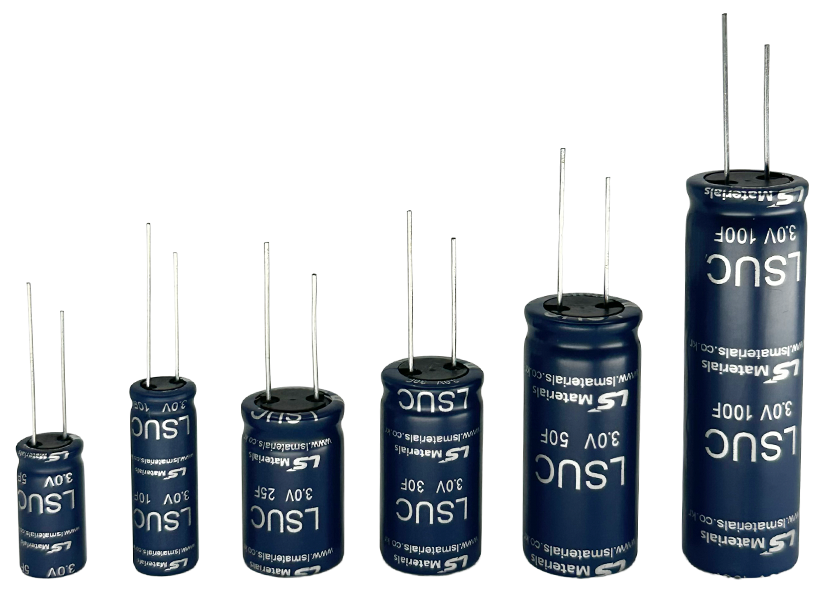

LS Ultracapacitor Small Cell Line-up

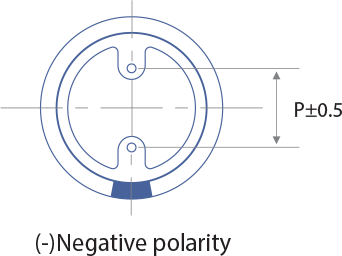

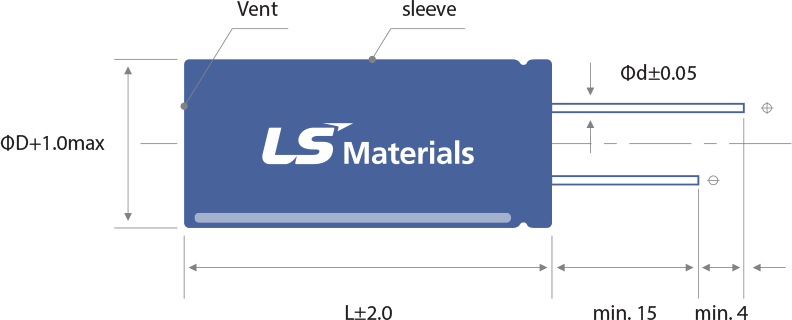

DIMENSIONS SPECIFICATIONS
PRODUCT SPECIFICATIONS
| Series | Rated Voltage |
Capacitance | Part Name | Max. ESR(DC) |
Max. Current |
Outer Diameter(ΦD) |
Height (L) | Pin Spacing(P) |
Pin Diameter(Φd) |
Spec Sheet |
|---|---|---|---|---|---|---|---|---|---|---|
| V | F | mΩ | A | mm | mm | mm | mm | |||
| Radial | 3 | 5 | LSUC 003ROR 0005F EA | ≤90 | 5.17 | 10 | 20 | 5 | 0.6 | download |
| Radial | 3 | 10 | LSUC 003ROR 0010F EA | ≤50 | 10 | 10 | 30 | 5 | 0.6 | download |
| Radial | 3 | 15 | LSUC 003ROR 0015F EA | ≤50 | 12.86 | 12.5 | 25 | 5 | 0.6 | download |
| Radial | 3 | 25 | LSUC 003ROR 0025F EA | ≤25 | 23.08 | 16 | 25 | 7.7 | 0.8 | download |
| Radial | 3 | 30 | LSUC 003ROR 0030F EA | ≤30 | 23.68 | 16 | 30 | 7.7 | 0.8 | download |
| Radial | 3 | 50 | LSUC 003ROR 0050F EA | ≤20 | 37.5 | 18 | 40 | 7.7 | 0.8 | download |
| Radial | 3 | 100 | LSUC 003ROR 0100F EA | ≤10 | 75 | 18 | 60 | 77 | 0.8 | download |
Cell/Module Part No. Rule
